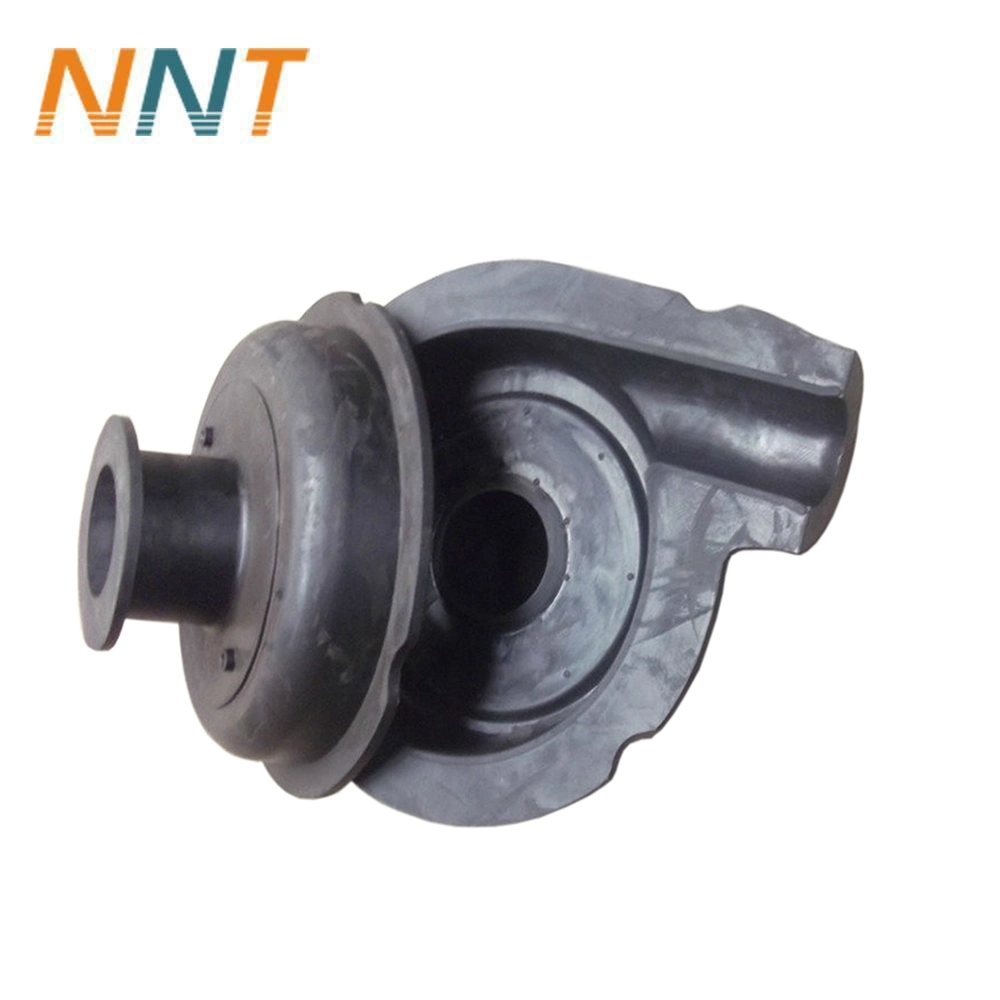

Electric pump volute casing centrifugal pump slurry pump mud pump
Description for slurry pump parts
Slurry pumps are cantilevered, horizontal, centrifugal slurry pumps which do heavy duty. They are designed for transferring the highly abrasive or corrosive slurry, high density slurry; they are popular in the metallurgical, mining, coal, power station, sea water river water & channel dredging, building material and other industrial departments.
The wet parts of slurry pump is made of high chromium alloy, or abrasive rubber so they are suitable for the liquid with solid, and with acid or alkali, this make the slurry pump powerful and widely used.
The pumps of this type can be driven by Electrical motor or by diesel engine or by hydraulic power.
The discharge of pump can be in eight positions to suit installations and applications.
The shaft seals can be adoptable of gland seal or expeller seal, or mechanical seal.
No. | ITEM | MATERIAL |
1 | Impeller | High-chrome alloy |
Rubber | ||
2 | Volute casing | High-chrome alloy |
3 | Front liner plate | High-chrome alloy |
Rubber | ||
4 | Rear liner plate | High-chrome alloy |
Rubber | ||
5 | Liner | High-chrome alloy |
6 | Expeller | High-chrome alloy |
7 | Shaft sleeve | 3Cr13 |
8 | Water-seal ring | High-chrome alloy |
9 | Shaft | 45#steel quenching And high temperature tempering |
10 | Bearing housing | Gray iron |
11 | Expeller ring | High-chrome alloy |
Rubber | ||
12 | Front casing | Gray iron or Nodular cast iron |
13 | Rear casing | Gray iron or Nodular cast iron |
14 | Base | Gray iron |
15 | Support | QT500-7 |
