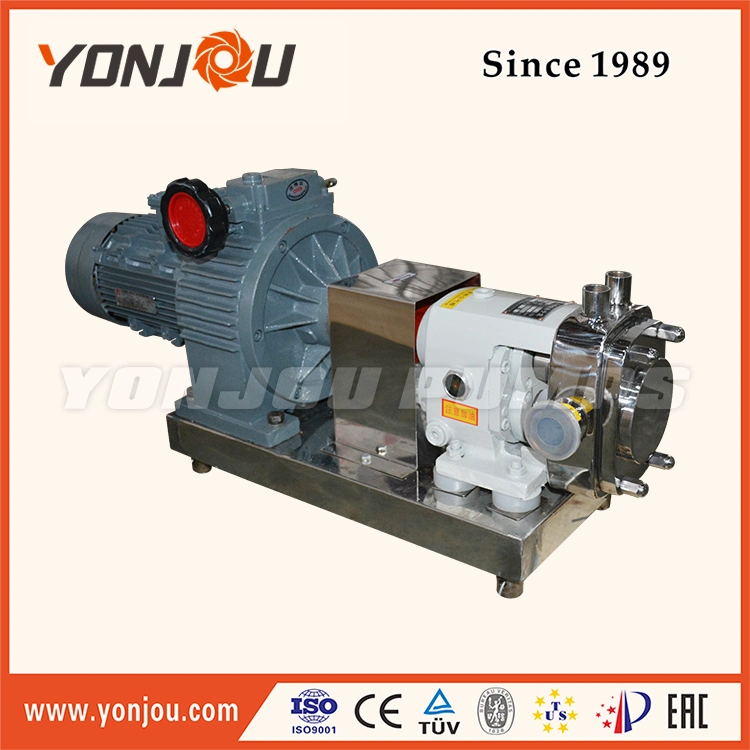

Summarize:1.Lobe Pump, Lobe Rotor Pump, Stainless Steel High Viscosity Pump, Honey Pump are used in a variety of industries including, pulp and paper, chemical, food, beverage, pharmaceutical, and biotechnology.
2.They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance, and good clean-in-place and sterilize-in-place (CIP/SIP) characteristics.
3.These pumps offer a variety of lobe options including butterfly lobe, double lobe, triple lobe.
4.Rotary lobe pumps are non-contacting and have large pumping chambers, allowing them to handle solids such as cherries or olives without damage. They are also used to handle slurries, pastes, and a wide variety of other liquids.
|Working Principle:||Double rotors|
|Main Applications:||Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives.|
|Driver:||Variable Speed Motor, Geared Motor, Variable Frequency Motor|
|Power Specs:||220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz|
|Max.permissible fluid temperature:||150°C (302°F) / 250°C (482°F)-water cool type|
|Type of connection:||Quick couple, Thread, Flange|
|Casing/Inner parts material:||Stainless Steel|
|Shaft seal type:||Mechanical seal|
|Maximum viscosity:||1x106 C.S.T|
|Maximum drive rating:||22kW(30HP)|
|Maximum discharge-side pressure:||5bar|
per 100r (L)
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
