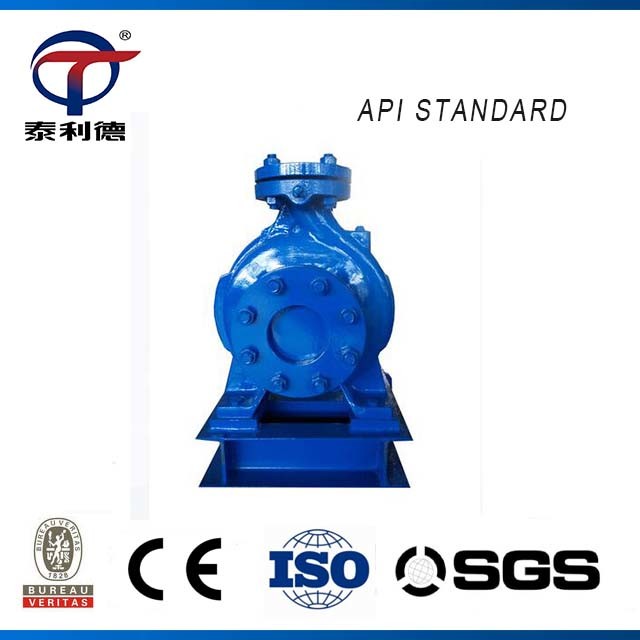

IH horizontal motor driven single stage chemical pump

Pump Name: IH chemical pump Application: IH type chemical pump used in chemical industry,  petroleum, metallurgy, electric power, food, pharmaceutical,synthetic fiber and other industrial sectors conveying corrosive medium, can meet in  chemical process inconveying a corrosive viscosity  similar to

Featured Products

Pump Name: IH chemical pump


Application:
IH type chemical pump used in chemical industry,  petroleum, metallurgy, electric power, food, pharmaceutical,
synthetic fiber and other industrial sectors conveying corrosive medium, can meet in  chemical process in
conveying a corrosive viscosity  similar to liquid water.


IH Horizontal Electric Motor Driven Single Stage Chemical Pump

Product Description:


Performance range:

  • Flow: Q=2.6-460m3/h
  • Head: H=11-132m
  • Medium Temperature:T=20-105ºC

Structure:

  • 1.Rated performance and the size of pump depends on ISO2858-1975 (E);
  • The size of cavity for assembling mechanical seal  and soft packing depends on ISO3069-1974(E);
  • The structure do not need disassemble the piping system can remove the rotor parts for
  • maintenance.
  • The pumps discharge and pipeline located at the middle top of the pump, the pump body strength even with small vibration and Low noise

Medium transfer:
Organic acid and inorganic acid, such as sulfuric acid,hydrochloric acid and phosphoric acid, etc.Alkaline solution of various concentrations of sodium hydroxide and sodium carbonate.All kinds of liquid petroleum products, organic and other corrosive materials and products.

Model implication:
IH:International standard chemical pump system products;
65:Pump's suction diameter.(mm);
50:Pump's discharge diameter.(mm);
160:In the name of the impeller diameter(mm);
A:The same model impeller was cut by one time;
S1 :Pump sealing form is S1 -- single end mechanical seal;


IH Horizontal Electric Motor Driven Single Stage Chemical Pump
Sealing structure  :
IH Horizontal Electric Motor Driven Single Stage Chemical Pump

According to the corrosion resistant ability and use temperature, the pump of the main components of material can be divided into the following:
MaterialTA31Cr18Ni91Cr18Ni12Mo2TiHT20-40
CodeTB(303)M(307)H
The direction of rotation of the pump: from prime mover to the direction of rotation of the pump, and from the
prime mover for clockwise rotation viewed;


IH Horizontal Electric Motor Driven Single Stage Chemical Pump
IH Horizontal Electric Motor Driven Single Stage Chemical Pump
IH Horizontal Electric Motor Driven Single Stage Chemical Pump

For more details,pls contact with us !
