Product Description

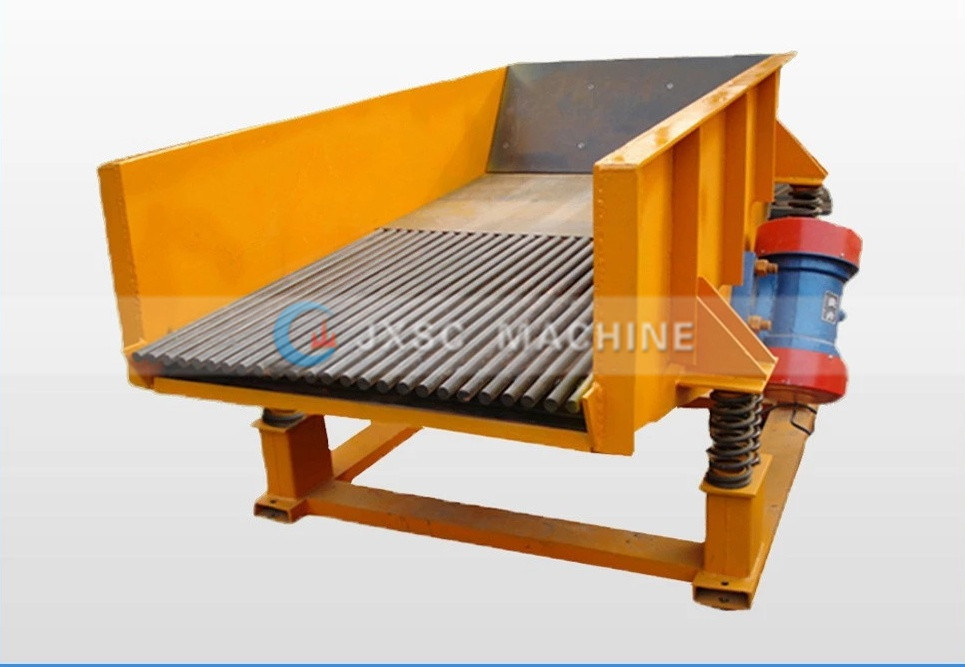

inertia vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electricity, food and other sectors to uniformly and continuously or quantitatively feed block, granular and powdery materials from stock bin or hopper to receiving device. For example: feed to crusher, sorting machinery, screening equipment, transport machinery, packaging machinery and others.
2.High efficiency and feeding capacity
3.Use enclosed structure of body to prevent dust pollution
4.Have low noise and can help to improve working environment
5.Little power consumption
6.Stable amplitude, reliable operation, and strong adaptability to a variety of materials
Technical data
Products application
vibrating feeder Introduction:
inertia vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electricity, food and other sectors to uniformly and continuously or quantitatively feed block, granular and powdery materials from stock bin or hopper to receiving device. For example: feed to crusher, sorting machinery, screening equipment, transport machinery, packaging machinery and others.mining feeder Advantages:
1.Use inertial vibrator as the vibration source, and there are no moving part and few wearing parts2.High efficiency and feeding capacity
3.Use enclosed structure of body to prevent dust pollution
4.Have low noise and can help to improve working environment
5.Little power consumption
6.Stable amplitude, reliable operation, and strong adaptability to a variety of materials
Technical data
| Model | Funnel Size | Input size | Capacity | Motor Power | Weight | Dimensions(mm) |
| (mm×mm) | (mm) | (t/h) | (kw) | (kg) | ||
| GZD-800×3000 | 800×3000 | 400 | 80-120 | 2.2 | 3195 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 2.2×2 | 3375 | 3850×1950×1630 |
| GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 3.7×2 | 4400 | 4400×2050×1660 |
| GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 5.5×2 | 4675 | 5200×2050×1700 |
| GZD-1300×5200 | 1300×5200 | 650 | 450-600 | 7.5×2 | 5400 | 5200×2350×1750 |
| ZSW-950×3800 | 950×3800 | 500 | 96-160 | 11 | 4100 | 3882×2224×2121 |
| ZSW-1100×4200 | 1100×4200 | 580 | 120-240 | 15 | 4745 | 4310×2500×1365 |
| ZSW-1100×4900 | 1100×4900 | 580 | 120-280 | 15 | 5420 | 4957×2500×1365 |
| ZSW-1100×5900 | 1100×5900 | 630 | 160-350 | 22 | 6100 | 6000×2500×2150 |
| ZSW-1300×5900 | 1300×5900 | 630 | 250-400 | 37 | 6300 | 6000×2700×2150 |
Products application
mining feeder project in Nigeria
Model:ZAW380*95 vibration feeder power:11kw vibrating feeder speed:600r/mm mining feeder capacity:120t/h
We have provided the vibration feeder for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.
We have provided the vibration screen for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa, Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant, diamond washing plant, Iron ore washing plant,ect.
Packing & Delivery
vibration screen machine Packing/Loading
1. vibration screen spare parts would be packed in wooden boxes to avoid broken.
2. vibration screen are fixed and loaded in container directly.
vibration screen machine Shipping
2. vibration screen are fixed and loaded in container directly.
vibration screen machine Shipping
1. vibration screen machine are shipped in 40'HQ Containers by sea.
2. vibration screen machine can be also shipped by air if customers request.
2. vibration screen machine can be also shipped by air if customers request.
Our Company
Jiangxi walker Machinery Co.,Ltd, is a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province. professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Our Main product including: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier. as well complete set small laboratory mining equipments
Our main market is in Africa, South Amercia, Europe , Southeast Asia, Asia,ect. Our cooperated customers cover Mali, Ghana, Sudan , Uganda, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Korea, Philippines, Monglia, Singapore, Inida, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Austrilia,U.S, UAE,ect.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Our Main product including: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier. as well complete set small laboratory mining equipments
Our main market is in Africa, South Amercia, Europe , Southeast Asia, Asia,ect. Our cooperated customers cover Mali, Ghana, Sudan , Uganda, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Korea, Philippines, Monglia, Singapore, Inida, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Austrilia,U.S, UAE,ect.
