NO.1 About Product

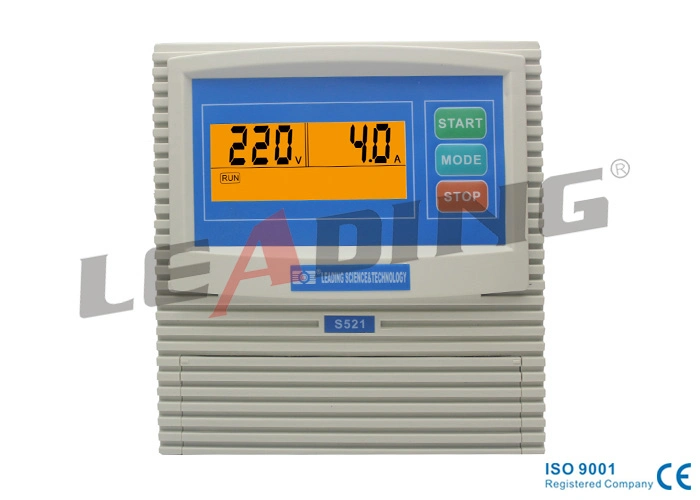

Description:Single Pump Control Panel(S521)With LCD Screen Displaying Pump Running Status
|Main technical data
|Direct on line
|Qty of controlled pump
|Rated input voltage
|AC220-240V Single phase 50HZ/ 60HZ
|Reserved space for installing start capacitor
|Rated output power
|0. 37KW-2.2KW (0.5hp-3hp)
function & features
|Over load protection
Pump stalled protection
Dry run protection with sensor free
Under voltage protection
Over voltage protection
|Control and protect universal pump

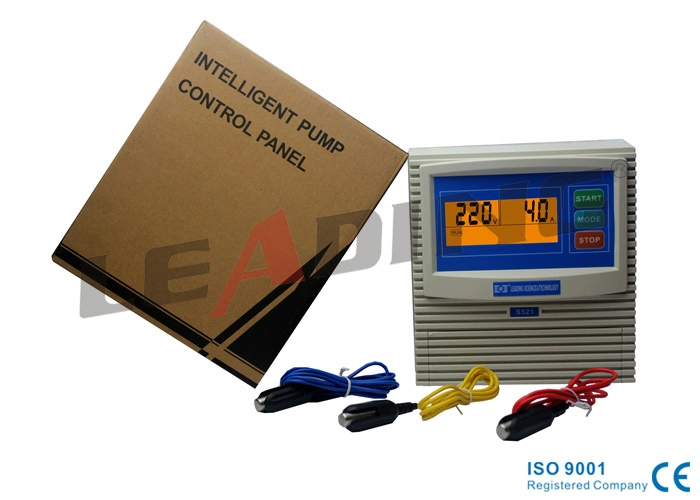

Using liquid probe sensor or float switch or pressure switch to control pump start and stop
.Applied for water supply by liquid level control through float switch or liquid probe
Applied for water supply by pressure control through pressure switch and pressure tank
Applied for drainage by liquid level control through float switch or liquid probe
|Push button calibration
Memory function when power off & recovery
LCD screen displaying pump running status
|Main installation data
Degree of protection
Unit dimension (L x W x H)
|-25 C-- +55 C
20%--90%RH, no drips concreted
170 x 155 x 85 mm
Typical usage scenarios include
-Water supply from wells
-Irrigations of greenhouses, gardens, agriculture
-Rain water reuse
-Waste water tank / Sewage sink
