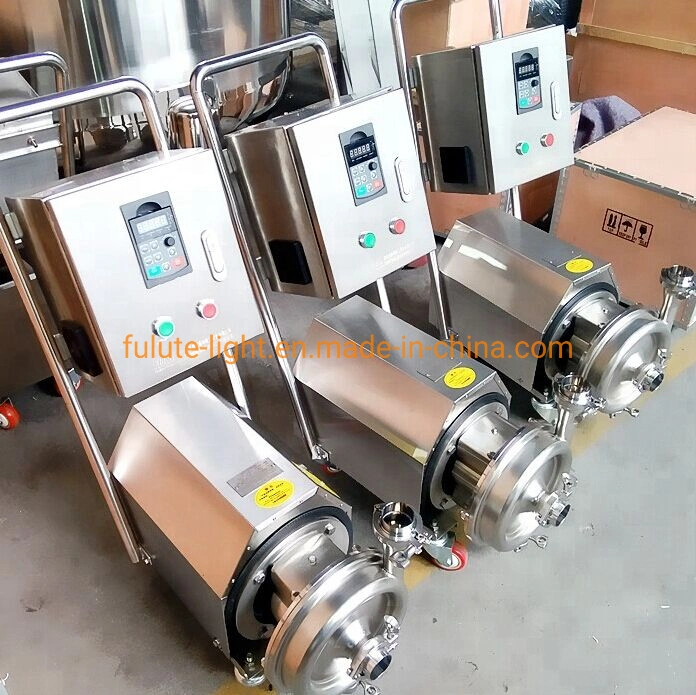

Product Name: Sanitary Centrifugal pump
Brand: Flowtam
Material: 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Flowtam Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
Brand: Flowtam
Material: 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Flowtam Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
| Model | Flow(Ton/Hour) | Lift(M) | Power(KW) | Inlet | Outlet |
| FLT03-15 | 3 | 15 | 0.75 | 38 | 32 |
| FLT03-20 | 3 | 20 | 1.1 | 38 | 32 |
| FLT05-24 | 5 | 24 | 1.5 | 51 | 38 |
| FLT05-32 | 5 | 32 | 2.2 | 51 | 38 |
| FLT10-24 | 10 | 24 | 2.2 | 51 | 38 |
| FLT10-32 | 10 | 32 | 3 | 51 | 38 |
| FLT15-24 | 15 | 24 | 3 | 51 | 51 |
| FLT20-24 | 20 | 24 | 4 | 51 | 51 |
| FLT20-35 | 20 | 35 | 5.5 | 63.5 | 51 |
| FLT30-24 | 30 | 24 | 5.5 | 63.5 | 51 |
| FLT30-35 | 30 | 35 | 7.5 | 63.5 | 51 |
| FLT40-24 | 40 | 24 | 7.5 | 76 | 63.5 |
| FLT50-24 | 50 | 24 | 7.5 | 76 | 63.5 |
| FLT50-35 | 50 | 35 | 11 | 76 | 63.5 |
| FLT80-30 | 80 | 30 | 15 | 89 | 76 |
| FLT80-40 | 80 | 40 | 18.5 | 102 | 89 |
