4+1 Axis CNC Control(X,Y1,Y2,R,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; W: Worktable crowning
Main functions and features
1.Overall welded and processed structure.
2.Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
3. Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
4. Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
5.Delem DA52S CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
6.Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
7.Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
|7||Main motor power||7.5||KW|
|11||Control axis||X+Y1+Y2+R +W||/|
|12||X axis Stroke||500||mm|
|13||X axis Speed||300||mm/s|
|14||R axis Stroke||150||mm|
|15||R axis Speed||50||mm/s|
Backgauge with ball screw and linear guide,high precision, fast speed and low noise.

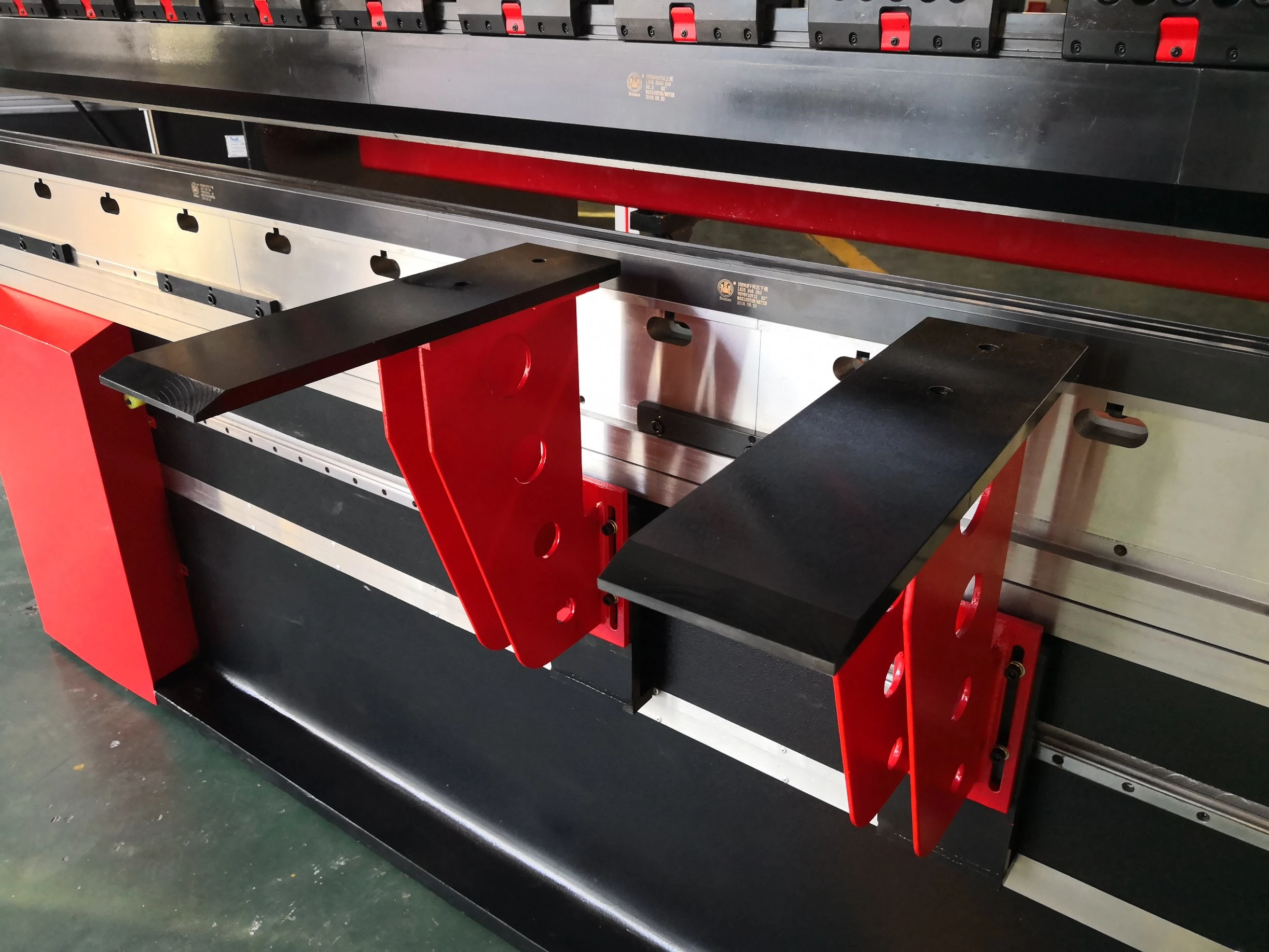

Double sliding front support arm
installed on the linear guide, High precision CNC table crowning .
Siemens main motor German brand.
Sunny pump USA brand. European style quick release clamping.
Rexroth valve German brand.
The guideway use the brass, wear-resisting, Pedal switch with emergency stop, safe
long service life. operation, the base with rollers easy to move.
The stopper move left and right on two linear guides.
|DA52SDelem Holland brand|
|Siemens Germany brand|
|Schneider France brand|
|Sunny USA brand|
|NOK Japan brand|
|Boschrexroth Germany brand|
Ball screw ,Linear guide
|HIWIN Taiwan brand|
|GIVI Italy brand|
|EMB Germany Brand|
Servo Motor and drive
|Thinkvo China brand|
DA52S CNC controlle
The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.
Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
The unique 'hotkey' navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.
1. Quick, one page programming
2. Hotkey navigation
3. 7" VGA colour TFT
4. Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
5. Crowning control
6. Tool/material/product library
7. USB, peripheral interfacing
8. Advanced Y-axis control algorithms for closed loop as well as open loop valves
The standard accessories are in the below:
1. Anchor bolt
2. Hex nut
3. Seal ring
5. Grease gun
6. Allen wrench
7. Foot switch
8. Front support arms
9. Electrical box key, control panel key
10. Operation manuals
