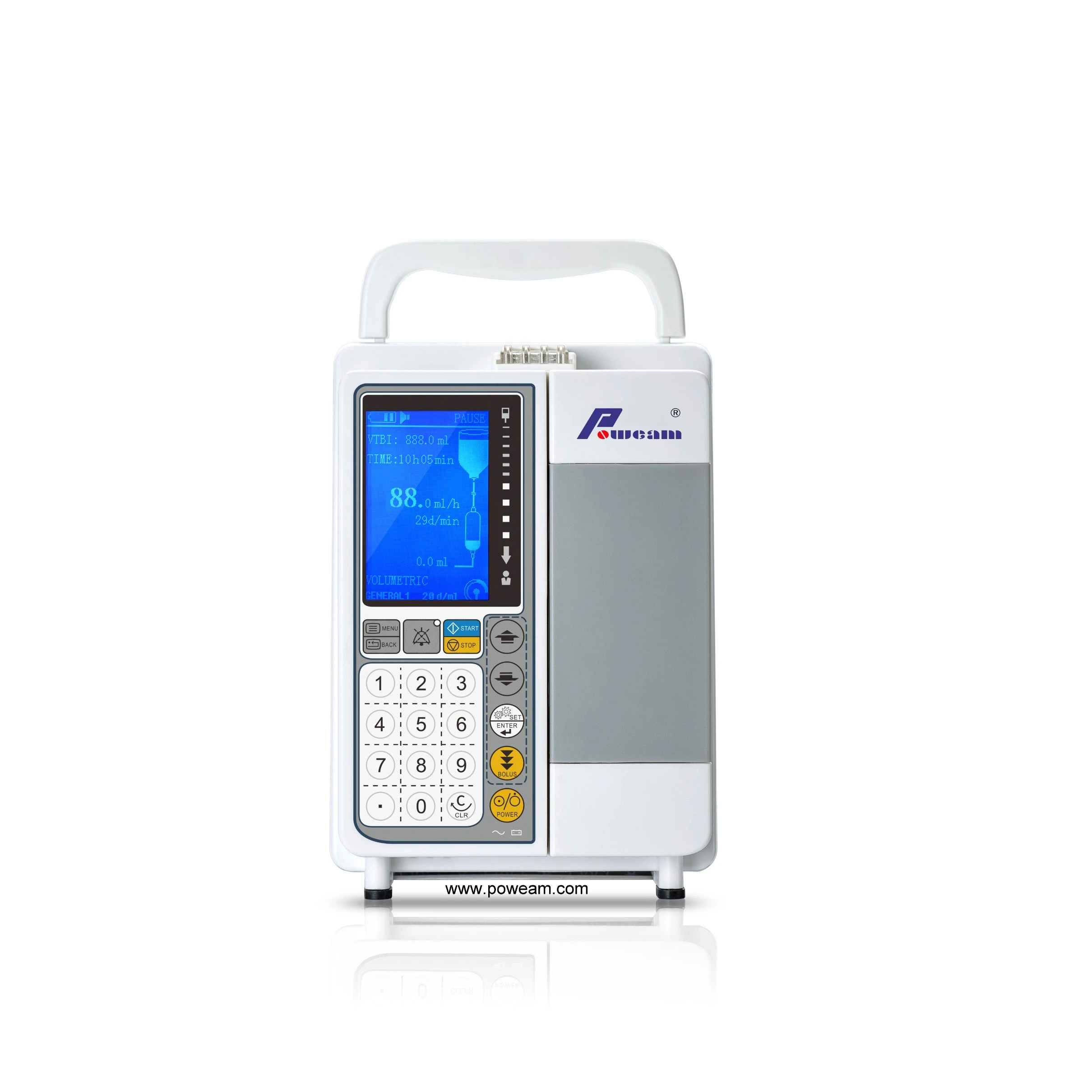

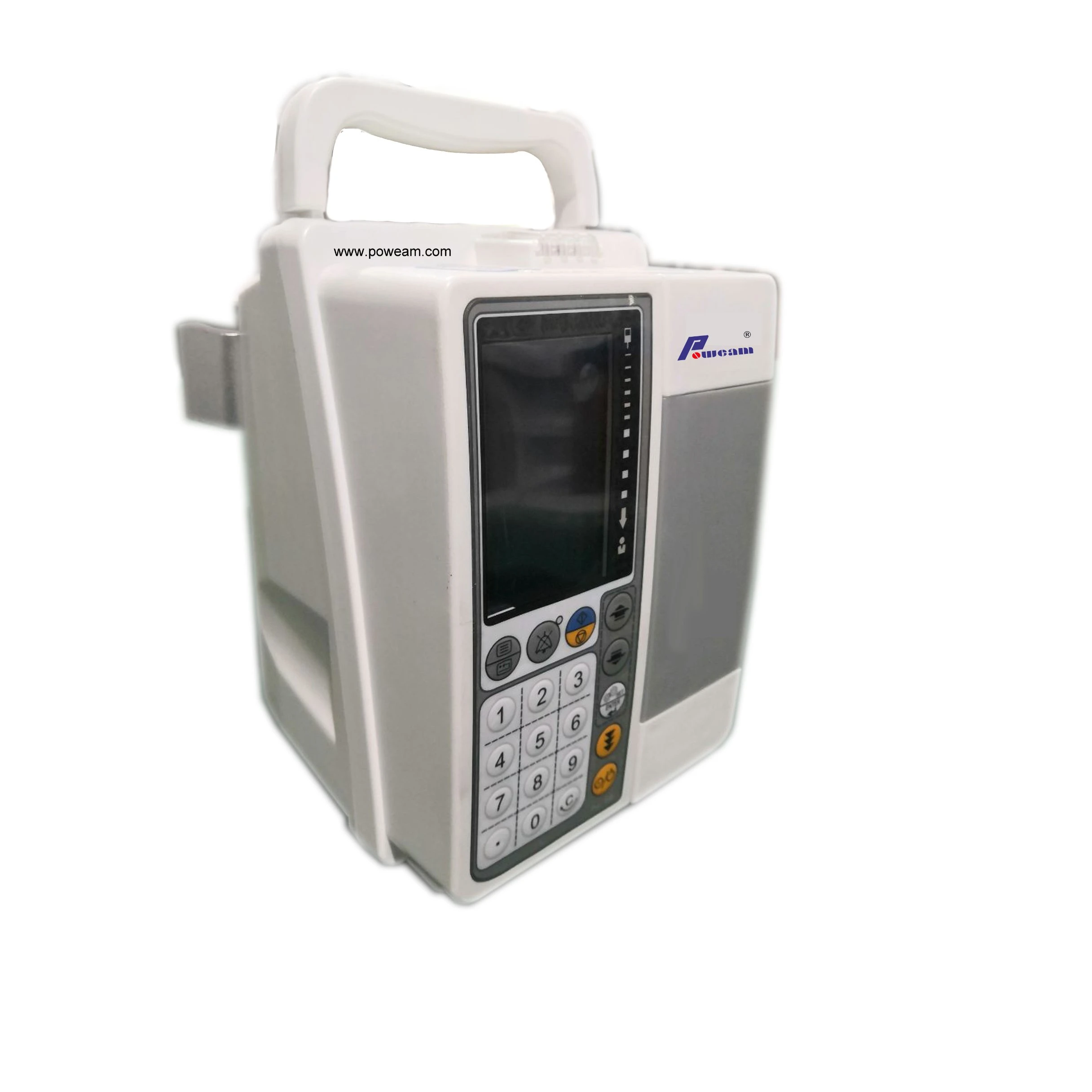

| CI-1000A Smart Infusion Pump | |
| Device Dimension | 145mm×150mm×200mm |
| Weight | around 1.7 Kg |
| LCD Type | LCD with high brightness |
| LCD size | 3.2 inch |
| Pump | Detachable peristaltic finger pump |
| Applicable IV set | Exclusive IV Set or standard single PVC IV Set( 10,15,20 and 60 d/mL, with outer diameter 3.4 ~ 4.5mm) |
| Infusion Mode | Volume mode, bolus mode, drip mode ( optional ), drug mode, volume/time mode |
| Flow Rate | 10d/ml:1.0ml/h-1200ml/h, 15d/ml:1.0ml/h-1200ml/h |
| 20d/ml | 1.0ml/h-1200ml/h, 60d/ml |
| Drip Rate | 10d/ml:1.0ml/h-150ml/h:1.0d/min-200d/min, 15d/ml:1.0d/min-300d/min |
| 20d/ml | 1.0d/min-400d/min, 60d/ml:1.0d/min-150d/min |
| Flow Rate Increment | |
| 10d/ml | 1.0-99.9ml/h in 0.1ml/h increment, 100-1200ml/h in 1ml/h increment |
| 15d/ml | 1.0-99.9ml/h in 0.1ml/h increment, 100-1200ml/h in 1ml/h increment |
| 20d/ml | 1.0-99.9ml/h in 0.1ml/h increment, 100-1200ml/h in 1ml/h increment |
| 60d/ml | 1.0-99.9ml/h in 0.1ml/h increment, 100-150ml/h in 1ml/h increment |
| Drip Rate Increment | in 1d/min increment |
| VTBI | 0.1-9999.9ml,in 0.1ml increment |
| Total Volume | 0-9999.9ml |
| Time Setting | 1 min-99h00min (or>99h) |
| Flow Rate Deviation | ≤±5%( Standard PVC exclusive or single use IV set after calibration, and Except under single fault condition) |
| KVO | 1.0-5.0ml/h adjustable(keep vein open at the lowest speed) |
| Purge Rate | 10,15,20d/ml |
| Occlusion Pressure Sensor | optional |
| Air Bubble Detector | Ultrasonic air detection, >50μl air bubble, single bubble 50-300μl, 10 level adjustable |
| Alarm Volume | Alarm volume with 10 level adjustable |
| Button Function | Total Number keypad, user friendly |
| BOLUS | Bolus Function, flow rate adjustable |
| Night Mode | LCD become dim in 2mins after night mode on. |
| Motor Anti- Reverse Function | Motor anti-verse function and monitor the motor constantly. |
| Self-Testing | Real time self-testing |
| Acoustic and Visual Alarm | Air bubble in line, upstream occlusion, downstream occlusion, door open, finish, standby time expired, battery low, no battery, battery disconnection, AC Power disconnection, motor error, pump error, pressure sensor disconnection, parameter error, drop sensor error, drop sensor disconnection, free flow, bottle empty, system abnormal, communication error, IV set not calibrated, air sensor error etc. |
