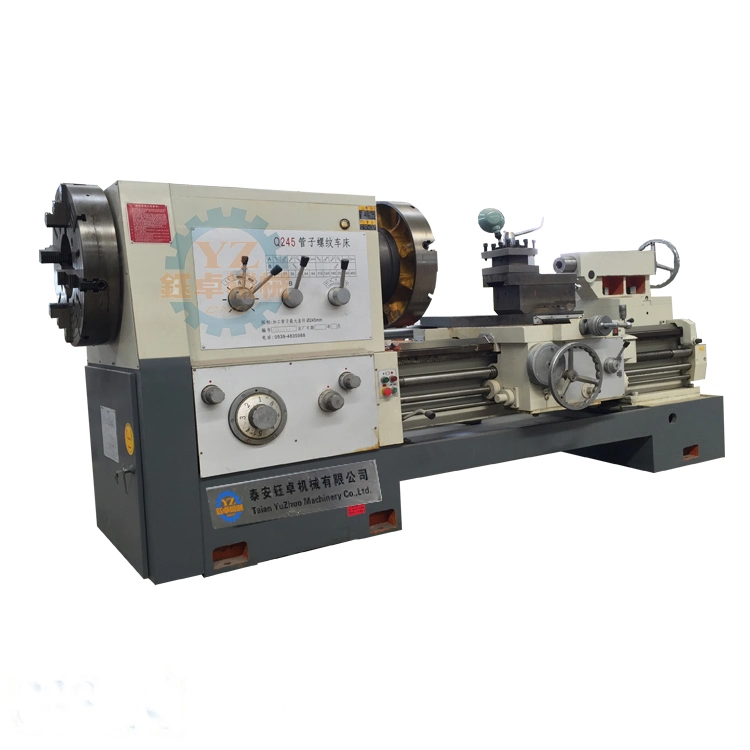

Q245 Manual Pipe Lathe Pipe Joint Threading Machine

Product Description Pipe Threading Oil Country Lathe Pipe Thread Lathe MachineSpecifciations:ItemUnitQ2451Maximum machining lengthmm10002Max. swing over bedmm8003Dia. of the pipemm50-2454The taper device travel of movingmm7505Spindle forward speed grade 126Range of spindle

Featured Products

Product Description

Pipe Threading Oil Country Lathe Pipe Thread Lathe Machine

Specifciations:
ItemUnitQ245
1Maximum machining lengthmm1000
2Max. swing over bedmm800
3Dia. of the pipemm50-245
4The taper device travel of movingmm750
5Spindle forward speed grade 12
6Range of spindle speedr/min20-460
7Spindle boremm250
8Aspect to the number of species   each 32
9Per revolution of spindle feed rangemmTransverse     0.04-0.65mm
mmLongitudinal   0.1-1.46mm
10Knife rest rotary per time the knife rest travelmm0.05
11Bottom slide rotary per time travelmm0.05
12Spindle and knife distancemm30
13Dia. of tailstock quillmm100
14Tailstock quill strokemm250
15Taper of tailstock quill MT5
16Main motor powerkw11
17Machine size (LxWxH)mm3300x1450x1600
18Weightkg6000


Standard Configuration:
1. CNC system: GSK980;
2. The spindle servo speed;
3. Front and rear three-jaw manual chuck;
4. Vertical four-position electric turret;
5. With tailstock;
6. Automatic lubrication system;
7. Turning cooling system;
8. Independent spindle, servo drives, variable speed.


Optional Configuration:
1. CNC system: KND, Siemens, Fanuc.
2. Electric chuck, pneumatic chuck, hydraulic chuck.
3. Horizontal six-position electric turret.
4. The rear bracket.


After-sale Services:
Warranty is one year.
We would offer the parts (quality problem) free of charge during this period, freight collect.

Note :  GSK ,Servo driven, motor and transformer, Warranty is 3 years.

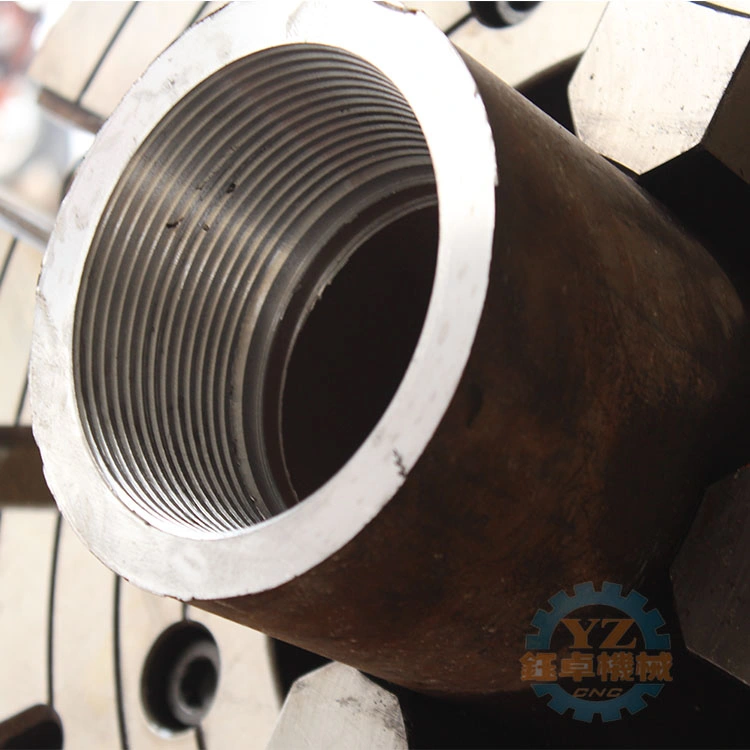

Machine Detailed Photos:
Q245 Manual Pipe Lathe Pipe Nipple Threading Machine


Company Information:
Q245 Manual Pipe Lathe Pipe Nipple Threading Machine
Q245 Manual Pipe Lathe Pipe Nipple Threading Machine
Q245 Manual Pipe Lathe Pipe Nipple Threading Machine
Q245 Manual Pipe Lathe Pipe Nipple Threading Machine
