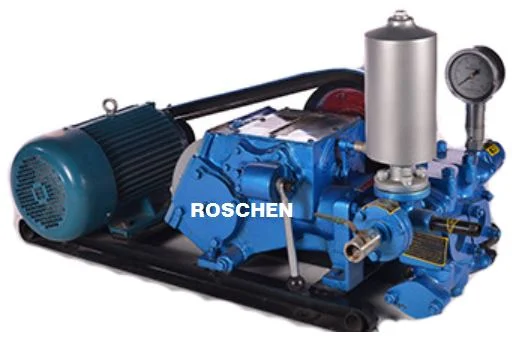

ROS -BW90 / 3 mud pump three cylinder piston pump third gearROS -BW 90 mud pumpThree cylinder piston pump / three speed transmissionMaximum flow:90L/minMaximum pressure:3MPaROS-BW90/3 Type mud pumpTechnical specifications of ROS-BW90/3 mud pumpTypeHorizontal three cylinder reciprocating single acting pis

Featured Products

ROS -BW90 / 3 mud pump three cylinder piston pump third gear
ROS -BW 90 mud pump
Three cylinder piston pump / three speed transmission
Maximum flow:90L/min
Maximum pressure:3MPa
ROS-BW90/3 Type mud pump
Technical specifications of ROS-BW90/3 mud pump
TypeHorizontal three cylinder reciprocating single acting piston pump
Cylinder diameter(mm)65
Stroke(mm)50
Pump speed(times/min)204144107
Flow(L/min)906550
Pressure(Mpa)123
Power(Kw)5.5
shape size(mm)1220*590*550
Weight)(kg205
Mud Pump Double Cylinder Mud Pump Three Cylinder Piston Pump Double Gear
 ROS-BW100/5 type Mud pump single cylinder plunger pump

ROS-BW-100/5 type Mud pump

Single cylinder plunger pump
Maximum flow:100L/min
Maximum pressure:5MPa

ROS-BW100/5 Technical specification of type-1 mud pump
       Technical specifications of ROS-BW100/5 mud pump

TypeHorizontal single cylinder reciprocating single acting piston pump
Plunger diameter(mm)110
Stroke(mm)75
Pump speed(times/min)108
Flow(L/min)100
Pressure(Mpa)5
Power(Kw)15
shape size(mm)2250*780*1700
Weight)(kg700
 Mud Pump Double Cylinder Mud Pump Three Cylinder Piston Pump Double Gear
ROS-BW120/3 type  Mud pump  double cylinder piston pump  double gear

ROS-BW-120/3 type Mud pump

Double cylinder piston pump / second gear shift

Maximum flow:120L/min

Maximum pressure:3MPa

ROS-BW120/3 type Mud pump specifications
Technical specifications of ROS-BW120/3 mud pump
TypeHorizontal double cylinder variable double liquid grouting pump
Cylinder diameter(mm)70
Stroke(mm)80
Pump speed(times/min)207145
Flow(L/min)120105
Pressure(Mpa)1.03.0
Power(Kw)5.5
shape size(mm)675*540*620
Weight)(kg120(without power)
 Mud Pump Double Cylinder Mud Pump Three Cylinder Piston Pump Double Gear
ROS-BW150/1.5 type Mud pump double cylinder piston pump double gear
ROS-BW-150/1.5 type Mud pump

Double cylinder piston pump / second gear shift
Maximum flow:150L/min

Maximum pressure:1.5MPa

ROS-BW150/1.5 type Mud pump specifications
Technical specifications of ROS-BW150/1.5 mud pump

TypeHorizontal three cylinder reciprocating single acting piston pump
Cylinder diameter(mm)65
Stroke(mm)50
Pump speed(times/min)207145
Flow(L/min)150105
Pressure(Mpa)11.5
Power(Kw)5.5
shape size(mm)675*540*620
Weight)(kg150(without power)
 Mud Pump Double Cylinder Mud Pump Three Cylinder Piston Pump Double Gear
ROS-BW150/3.5 Double speed change of double liquid grouting double cylinder piston pump

ROS-BW-150/3.5 Type Double fluid mud pump

Three cylinder piston pump / two speed transmission
Maximum flow:150L/min

Maximum pressure:3.5MPa

1. Double cylinder and double liquid can realize the suction and discharge of two kinds of liquid.

2. According to the demand, the discharge volume of equipment can be selected, the flow can be adjusted, and the construction is flexible.

ROS-BW150/3.5 Technical specification of double liquid grouting pump
        ROS-BW150/3.5 double liquid grouting pump technical specifications
TypeHorizontal double cylinder variable double liquid grouting pump
Cylinder diameter(mm)70
Stroke(mm)80
Pump speed(times/min)8258
Flow(L/min)15090
Pressure(Mpa)2.53.5
Power(Kw)5.5
shape size(mm)675*540*620
Weight)(kg150
