PUMP
Cast iron pump body and support
Stainless steel/Brass impeller/PPO impeller
Max. Liquid temperature: +40ºC
MOTOR
Insulation class: B or F
Protection class: IPX4
Max. ambient temperature: +40ºC
Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS

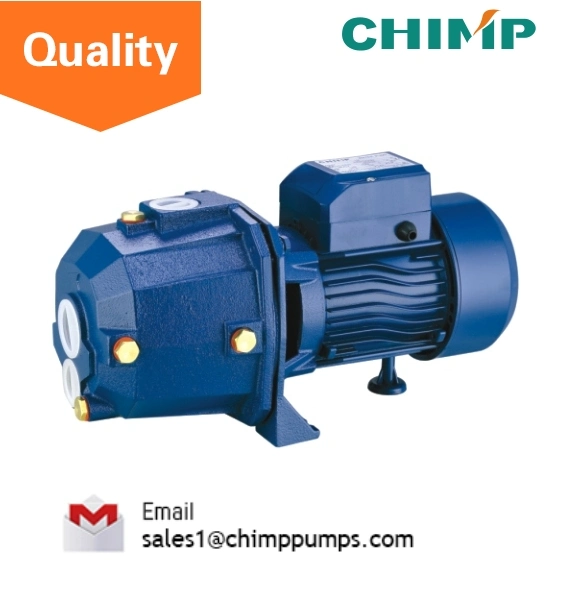

Self-priming JET and centrifugal pumps for deep wells water pumps installed above the ground with the jet body submerged guarantees function even when the static level of the well water falls as far as 25 meters below the level of the installed pump.So they are extremely reliabe,economical and simple to use and find many usages in domestic applications and the automatic distribution of water from small and medium-size surge tanks,watering gardens,ect. In all cases where the suction depth exceeds the normal capacity for surface pumps.It is suitable for pumping clean water and liquid which are not chemically aggressive to the pump components.
- Explosive view
SPARE PARTS NAME:
| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Pump casing | 10 | Key | 19 | Housing | 28 | Rotor |
| 2 | Charge plug | 11 | "O"ring | 20 | Fairlead | 29 | Split ring |
| 3 | "O" ring | 12 | Mechanical Seal | 21 | Cable presser | 30 | Back cover |
| 4 | "O" ring | 13 | Pump support | 22 | Terminal board | 31 | Bolt |
| 5 | Diffuser | 14 | Drops guard | 23 | Screw | 32 | Fan |
| 6 | Nut | 15 | Bearing | 24 | Capacitor | 33 | Fan cover |
| 7 | Snap ring | 16 | Snap ring | 25 | Terminal cover | ||
| 8 | Washer | 17 | Bolt | 26 | Screw | ||
| 9 | Impeller | 18 | Stand | 27 | Wound stator |
PRODUCTS TECHNIQUE
| MODEL | POWER | MAX.FLOW | MAX.SUCT | PACKING DIMENSION | ||||
| (l/min) | MAX.HEAD | (M) | INLET/OUTLET | G.W. | (MM) | |||
| kW | HP | (M) | (in) | (KGS) | ||||
| JDP255A | 0.55 | 0.75 | 40 | 32 | 20 | 1.25"X1"X1" | 13 | 410X275X225 |
| JDP370A | 0.75 | 1.0 | 40 | 50 | 25 | 1.25"X1"X1" | 14 | 410X275X225 |
| JDP550A | 1.1 | 1.5 | 45 | 60 | 30 | 1.25"X1"X1" | 28 | 520X230X265 |
| JDP505B | 1.1 | 1.5 | 50 | 70 | 30 | 1.5"X1"X1" | 28 | 520X230X265 |
| JDP750A | 1.5 | 2.0 | 55 | 70 | 40 | 1.25"X1"X1" | 30 | 520X230X265 |
| JDP750B | 1.5 | 2.0 | 60 | 80 | 40 | 1.5"X1"X1" | 30 | 520X230X265 |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
